DLE-200 - Ring Down Unit - 637-202
DLE-200 - Ring Down Unit - 637-202

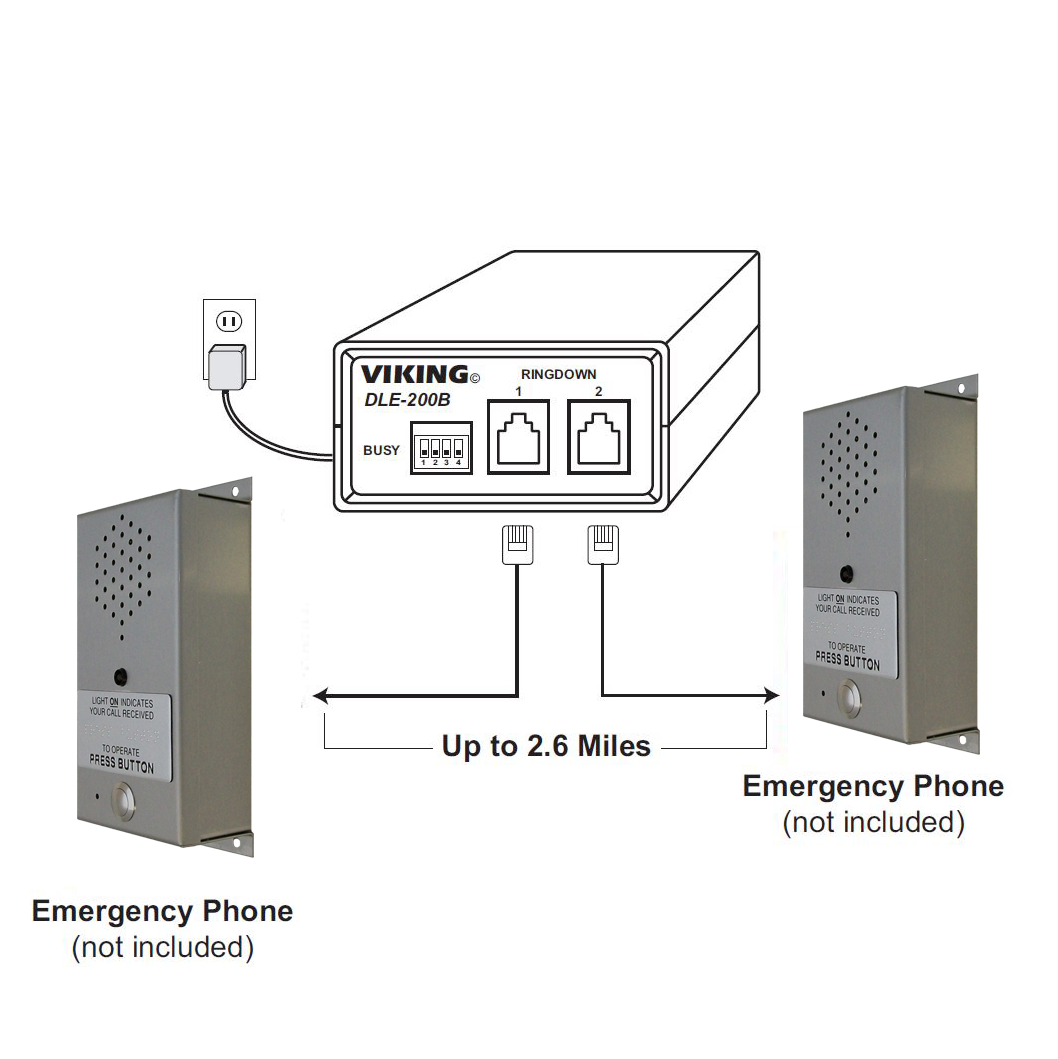

The DLE 200 Ring Down Circuit allows you to connect two handset type or push to talk phones to create a two way intercom system. Any CJA intercom system uses one of these to allow the two stations to connect to each other.
Lead Time: 3-5 Days
Specifications
Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
Power Supply Current Draw: 600mA maximum Dimensions: 4.75” x 2.75” x 1.38” (120mm x 70mm x 35mm)
Environmental: 32° F to 90° F (0° C to 32° C ) with 5% to 95% non-condensing humidity
Ringer Output: 2.0 REN load maximum
Talk Battery: 32V DC Dial Tone Level: -20dBm with 600 ohm load Loop
Length: 2.6 mi (4.2 km ) maximum - 24 AWG twisted pair Maximum Data
Speed: 28,800 bps CPC Break Time: 2 seconds or 150 msec (selectable) Connections: (2) RJ11 jacks
